Product Overview

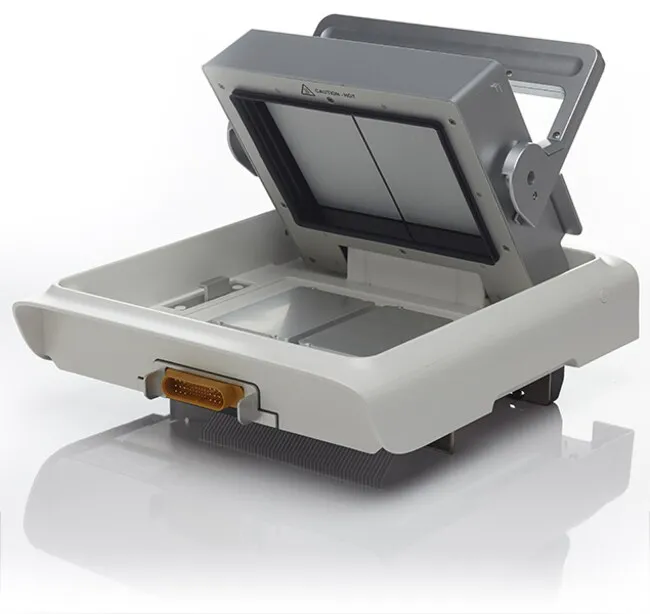

The ProFlex PCR System is unique in its design, with interchangable blocks that allow for future changes in research requirements. In a step that typically takes less than 15 seconds, the block is changed without the need for special tools or kits. ProFlex interchangable blocks are intended for use with the ProFlex PCR System and require a ProFlex Base Module for operation. • The ProFlex 96-well Sample Block has one 96-well, 0.2-mL module • The ProFlex 2 x 96-well Sample Block has two 96-well, 0.2-mL modules • The ProFlex 2 x 384-well Sample Block has two 384-well, 0.02-mL modules • The ProFlex 2 x Flat Sample Block has two flat modules and is optimized for use with TaqMan OpenArray Genotyping plates • The ProFlex 3 x 32-Well Sample Block has three independently-controlled, 32-well, 0.2-mL modules, allowing you to share your instrument with two other people or run three experiments at once For Research Use Only. Not for use in diagnostic procedures. |
Specifications
| Dimensions | 22 x 13 x 10.6 in. (56.5 x 33 x 27.2 cm) |
For Use With (Equipment) | ProFlex PCR System |
High-throughput Compatibility | High-throughput Compatible |
Max. Heating Rate (Thermal Block) | 1.6°C/sec. (Block) |
Quantity | 1 unit |
Thermal Accuracy | ±0.25°C (35°C to 99.9°C) |
Thermal Range | 0°C to 100°C |
Thermal Uniformity | <0.5°C (20 sec. after reaching 95°C) |
User Interface | USB, WiFi, Cloud, Ethernet |
Voltage | 100/240 V |
Weight | 21.4 lb. (9.7 kg) |
Block Configurations | 2 x Flat Blocks |
Capacity | 8 OpenArray™ (3072 Through-Hole) Plates, 16 x 20 K Chips |
Product Type | Thermal Cycler |
Unit Size | Each |
Contents & Storage | Store at room temperature. |
