Product Overview

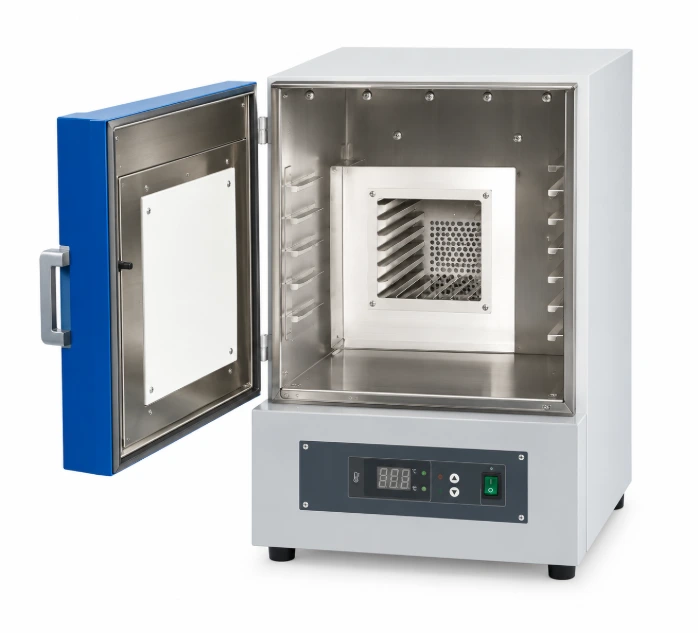

Aptokart Muffle Furnace is designed to provide Precise Temperature Control to maintains the required temperature with reliable accuracy, Excellent Thermal Insulation which minimizes heat loss and improves energy efficiency and Uniform Heating to provide consistent heating throughout the chamber. Imported heating elements are used .It is available in various temperature ranges and chamber sizes. Each unit is made with rugged construction and equipped with easy to use controller system and safety devices. Standard models of Prozil Muffle Furnace comes with temperature range 1100 °C, 1400°C, 1600°C and 1800°C. As standard Microprocessor based PID temperature controller is given. In addition, we also use Programmable (profile) temperature controller having 30 steps for ramp rate and soak time. These controllers feature excellent accuracy during the entire cycle and also keep displaying set value (SV) and process value (PV)
|
Technical Specifications
MOC | Built on a thick steel frame Outer cabinet : usually made of powder coated cold rolled sheet. |
Heating Element: | In 1100°C muffle furnace imported Kanthal A-1 resistive wire heating elements are used, while in 1400°C high temperature muffle furnaces, we use Silicon Carbide Rods and in 1600°C and 1800°C muffle furnace MoSi2 (Molybdenum Silicide) are used. |
Controller | As standard Microprocessor based PID temperature controller is given. In addition, we also use Programmable (profile) temperature controller having 30 steps for ramp rate and soak time. |
Heating Zone | For 1100°C furnace, heating chambers are made of Ceramic Fiber Board but for 1400 °C furnace, Ceramic Zirconium board is used |
Insulation | High density Ceramic Fiber Blanket is used as insulator to keep the outer surface at minimum temperature. |
Power Supply | 220–230 Volts AC, 50–60 Hz |
Ordering Informations
Model | AK-MF 11 | AK-MF 14 | AK-MF 16 | AK-MF 18 |
Temperature | 1100 °C | 1400°C | 1600°C | 1800°C |
