Product Overview

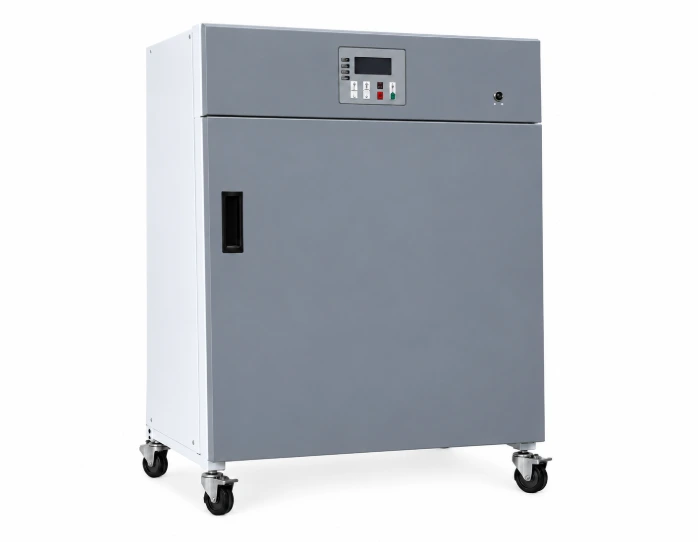

Aprokart Hot Air Oven uses forced convection system which ensures good mixing, strong dispersion and maintains higher temperature uniformity inside the chamber.
|
Technical Specifications
MOC | Internal working chamber & Perforated Trays : SS-304 Stainless steel Exterior cabinet : PCRC sheet duly powder coated |
No. of Shelves | 2 |
Temperature Range | 50°C to 200°C, ±1°C |
Exhaust Filter | HEPA (Efficiency 99.97% @0.3 microns to meet air quality) |
Forced Convection | Available with Forced Convection System |
Controller | Microprocessor based PID Digital Temperature Indicator-Cum Controller with LED display |
Power Supply | 220–230 Volts AC, 50–60 Hz |
Any Duty exhaust system | Standard fitted to the system for 100% exhaust |
Any Tunnel /Duct (optional) | Available on per running feet basis |
Sash Lift | Can be lifted and adjusted manually |
Ordering Informations
Model | AK-HOA 28 | AK-HOA 45 | AK-HOA 95 | AK-HOA 125 | AK-HOA 224 | AK-HOA 350 |
Internal Dimensions (WxDxH) mm | 600x600x600 | 900x600x600 | 1200x600x600 | 1500x600x600 | 1780x600x600 | 750x750x900 |
Capacity Heat Load | 28 ltrs. 0.75 kW | 45 ltrs. 0.75 kW | 95 ltrs. 1.5 kW | 125 ltrs. 1.5 kW | 224 ltrs. 2.25 kW | 350 ltrs. 3 kW |
Temperature Range | 50 °C to 200 °C +_ 1 °C |
Forced Convection | Available with forced convection system (Standard Features) |
Controller | Microprocessor based PID Digital Temperature Indicator-Cum-Controller with LED Display |
Regulator | Solid state electronic relay with protective heat sink |
