Product Overview

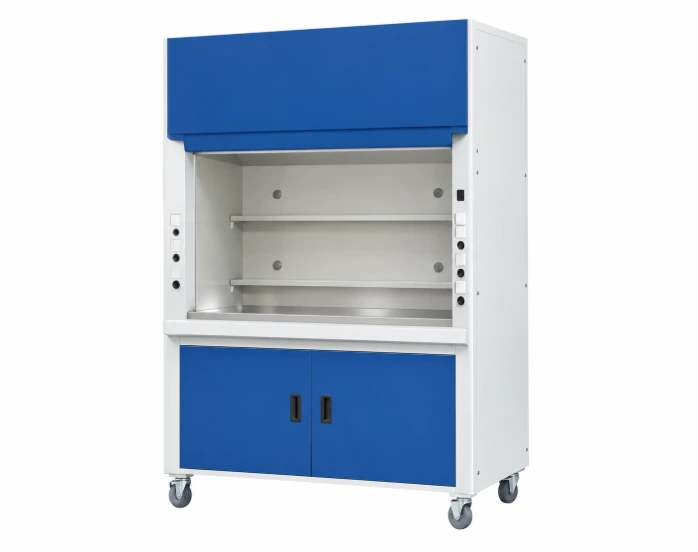

The Aptokart Fume Hood is designed to provide a safer working environment in laboratories by extracting hazardous fumes, vapours, gases, and airborne contaminants generated during chemical handling and experimental procedures. It helps minimize laboratory personnel's exposure to harmful substances when properly installed, operated, and maintained. Designed for laboratory applications, the fume hood offers a practical workspace for chemical operations while supporting effective ventilation and improved workplace safety. Aptokart Fume Hood is known for its aerodynamic design, low noise, low maintenance, onsite installation, demo and after sale service by company engineer and guaranteed supply of spare for 10 yrs. |
Technical Specifications
Construction | Exterior: GI or MS sheet duly powder coated Interior: Chemical resistance, Durable FRP or Polypropylene or Glass fiber integral work walls (5mm thick) with Baffle arrangement. Work Table : Chemical resistance, Splash & Spillage poof Granite. it has PP sink for drainage with a water tap and drain arrangement. Dry & Wet Service: Auxiliary type fume hood with all remotely operated color coded (as per international fitting norms)service lines for water supply, two gas ports, vacuum and LPG gas connection and two electrical sockets. |
Design | Aerodynamic, Floor mounted |
Baffle Arrangement | With 3 point suction system for light, normal and heavy fumes to ensure smooth and immediate exhaust of fumes. |
Air Flow Type | Automatic bypass Type |
Sash | Vertical rising counter balanced made with Toughened Glass (4mm thick) with smooth & light operation. |
Lighting | Fluorescent light (40 watt 1 no. or 20 watt 2 nos.) with vapor-proof fitting for proper illumination. |
Adjustment | to adjust fume hood level by ±100mm approx. |
Electrical Utility | Electrical socket (230 V/15 A/50 Hz) with blower NO/NC switch and lighting switch on front Fascia. |
Chemical Storage | Base cabinet with two Horizontal partition, Internal FRP lining on the cabinet walls for corrosion resistance and Double skin doors with magnetic interlocking system is provided below the working top for storage of chemicals. |
Fire Extinguisher | Dry powder fire extinguisher (500gm) |
Electric Supply | 220/230 V AC, 50/60 Hz |
Ordering Information
| Size (Ft) |
AK- FH 010 | 2x2x2 ft |
AK- FH 011 | 3x2x2 ft |
AK- FH 012 | 4x2x2 ft |
AK- FH 013 | 5x2x2 ft |
AK-FH 014 | 6x2x2 ft |
Optional Items :
- 1. Fume PVC Duct Pipe
- 2. Grid at the back wall of working station to hold glass apparatus.
Buyer's Obligations:
1. At the time of ordering please specify the name of chemicals/solvents to be used so that we check compatibility of the contact parts of the fume hood.
Company will not be responsible for any compatibility problems if the uses are not specified with the order.
2. Water supply should be within 1 meter distance from the site of Fume Hood.
3. Electrical connection with 1 phase 220 Volts within 1 meter distance from the site of Fume Hood.
4. Drainage System should be near the system.
5. Suitable space for exhaust pipe at around 10 ft height.
6. The equipment id big, Bulky and Heavy . So please check the door size and passage to the site of installation. It is recommended to place the unit in ground floor.
Caution:
Regular Fume Hoods are not compatible with Hydrofluoric acid. However, special model is available for working with Hydro fluoric fumes on customization basis.
