Product Overview

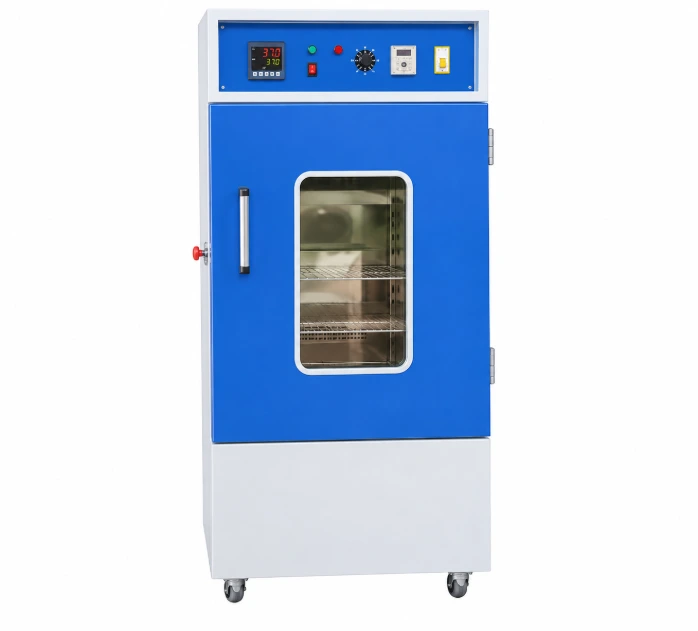

Aptokart BOD Incubators are designed to deliver the superior performance, quality and reliability required by researchers and clinicians. It delivers precise and uniform temperature control suitable for experiments requiring low temperature conditions like micro-orgamism activation, cell culture process, desalting process of enzyme extraction, etc. It offers robust and corrosion-resistant outer body with excellent temperature stability and uniformity, easy-to-use control panel and energy-efficient refrigeration system. It has a full view plexi-glass door which enables inspection and monitoring of inner chamber specimens without disturbing the process temperature. user -oriented design of shelves makes easy to adjust each space of shelves without difficulty. Forced air circulation at triple walled back by durable coaxial blower maintains optimum temperature uniformity and homogeneity. it is designed with High Pressure Foamed In-Place PUF Insulation between outer and inner chamber to minimize thermal losses and Finned Tube Evaporator facilitates uniform and faster cooling effects. Door operated illumination lamp is fitted inside the chamber for easy visibility. It is mounted on castor wheel for easy portability. |
Technical Specifications
MOC | Internal working chamber & Trays : SS-304, Exterior cabinet : Powder coated CRC steel sheet |
Type | Forced Convection Type |
Freezer Compressor | Hermetically Sealed air cooling compressor system |
Temperature Range | 5 °C to 50 °C (Resolution 0.1°C) |
Accuracy | ±0.5°C |
Power Supply | 220/230 Volts AC supply |
Safety | Over temperature limiter switch prevents over heating |
Temperature Controller | Microprocessor-based digital temperature indicator cum controller with LED display for Set Value (SV) & Process Value (PV) OR Microprocessor-based alphanumeric LCD display controller |
Voltage Indicator & High Voltage Protection | Through a highly accurate automatic voltage stabilizer (optional) |
Electric Supply | 220/230 V AC, 50/60 Hz |
Ordering Information
Model | AK-BOD 03 | AK-BOD 04 | AK-BOD 06 | AK-BOD 10 | AK-BOD 12 | AK-BOD 15 | AK-BOD 16 |
Internal Dimensions (WxDxH) mm | 400x450x450 | 455x410x610 | 505x415x830 | 570x550x875 | 650x580x900 | 700x640x900 | 700x640x970 |
Capacity | 85 Ltrs. | 112 Ltrs. | 171 Ltrs. | 280 Ltrs. | 340 Ltrs. | 420 Ltrs. | 450 Ltrs. |
Volume | 3 Cuft | 4 Cuft | 6 Cuft | 10 Cuft | 12 Cuft | 15 Cuft | 16 Cuft |
No. of Shelves | 2 | 2 | 2 | 3 | 3 | 4 | 4 |
