Product Overview

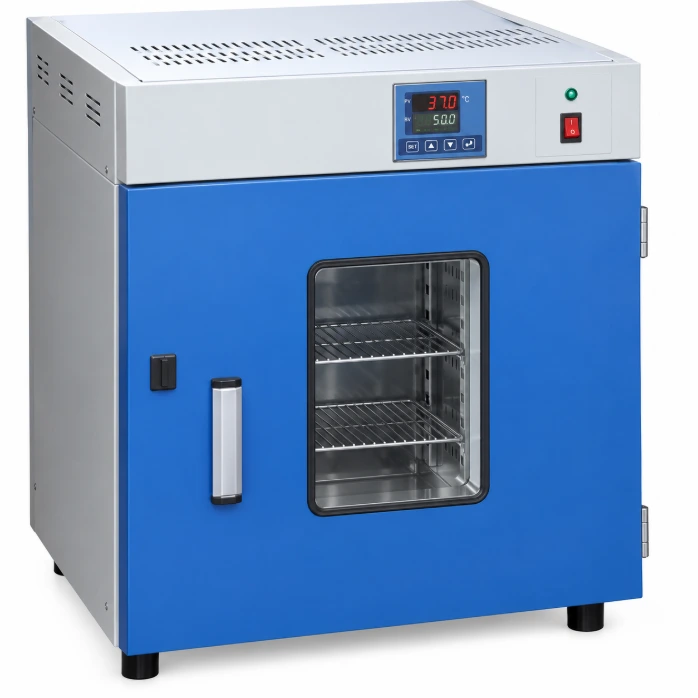

Aptokart Hot Air Oven uses forced convection system which ensures good mixing, strong dispersion and maintains higher temperature uniformity inside the chamber.
|
Technical Specifications
MOC | Internal working chamber & Perforated Trays : SS-304 Stainless steel Exterior cabinet : Mild steel sheet duly powder coated |
No. of Shelves | 2 |
Temperature Range | 5°C to 70°C, ± 1°C |
Exhaust Filter | HEPA (Efficiency 99.97% @0.3 microns to meet air quality) |
Forced Convection | Available with Forced Convection System |
Temperature Controller | Microprocessor based PID Digital Temperature Indicator-Cum Controller with LED display |
Power Supply | 220–230 Volts AC, 50–60 Hz |
Ordering Information
Model | AK-INC 28 | AK-INC45 | AK-INC 95 | AK-INC 125 | Ak-INC 224 |
Internal Dimensions (WxDxH) mm | 300x300x300 | 355x355x355 | 455x455x455 | 455x455x605 | 600x600x600 |
Capacity Heat Load | 28 ltrs. 0.50 kW | 45 ltrs. 0.50 kW | 95 ltrs. 1.00 kW | 125 ltrs. 1.00 kW | 224 ltrs. 2.00 kW |
Temperature Range | 5 °C to 70 °C +_ 1 °C |
Forced Convection | Available with forced convection system (Standard Features) |
Controller | Microprocessor based PID Digital Temperature Indicator-Cum-Controller with LED Display |
Regulator | Solid state electronic relay with protective heat sink |
Documents
Brochure User Manual Certifications OEM Product Link
