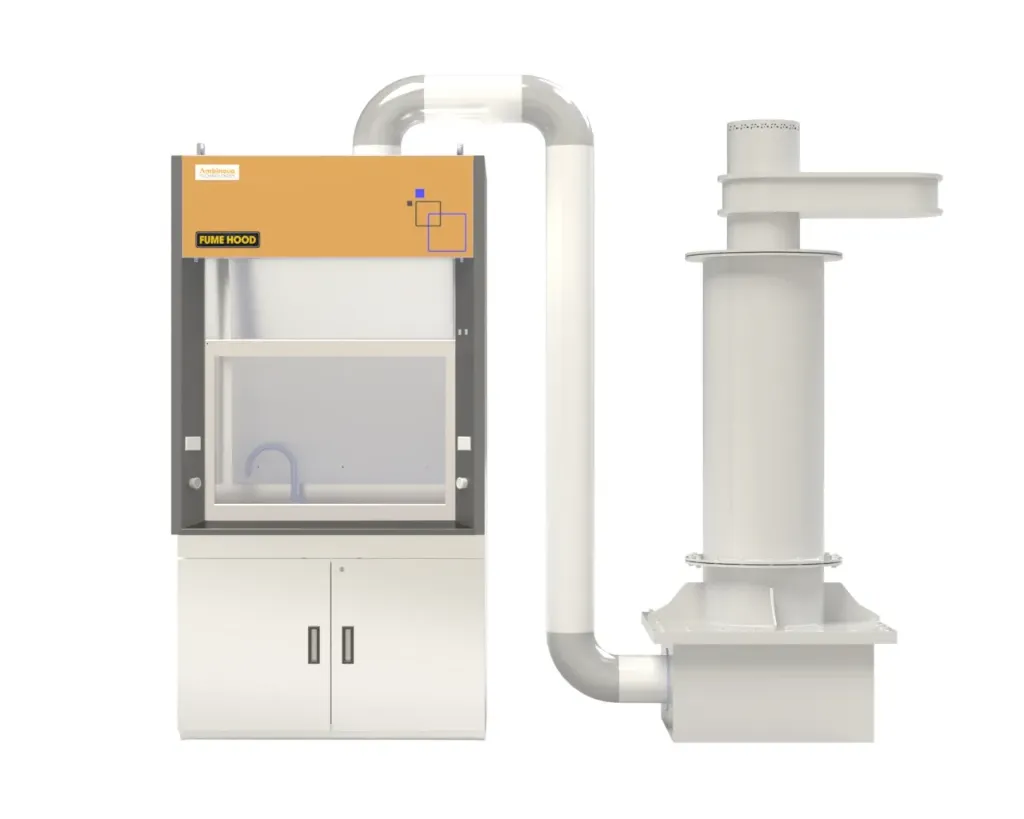

Fume Hood (6 Ft)

Model - AMBI-FH-06

Description

Fume hoods are engineered to serve as a contained, ventilated environment that offers significant protection to the user. They are specifically designed to expel toxic vapors, acidic or alkaline fumes, and unpleasant odors from the work space, thereby safeguarding both expensive equipment and the experimenter.

Key Features

• LowNoise.
• User Friendly Ergonomic Design.
• Double-walled construction.
• Material : Mild steel powder coated or Stainless Steel 304 Grade
• All interior surfaces are sealed and checked for leakage.
• Work table is made of Jet black granite (Thickness : 18 mm).
• Working area is illuminated by fluorescent lighting fitted to the unit.
• The front shutter made of toughened float glass moves vertically up and down with concealed counter balanced weight.
• The centrifugal blower and motor assembly is statically and dynamically balanced & operates with minimum noise level.
• Supplied with bottom storage cabinet.
• Provided with levelling jacks.
• Supplied with cord & plug to work on Single Phase 220 / 230 volts A.C. supply

Technical Specifications

Inner dimension - (Ft) (Wx Dx H)- 6x2x2

Application - Provide protection to the operator

Control panel - Separate switch for Fan & Fluorescent Light

Face Velocity - 80-120 FPM

Noise level - Less than 70 db

Illumination - 400 LUX [Fluorescent Light]

Ducting - PVC(Dia-8”Inches)

Motor - Heavy duty single phase

Nominal voltage - 220-230 Volts,50 Hz Single Phase

Accessories - Electric socket (5/15 amp) with MCB – 2Nos.
